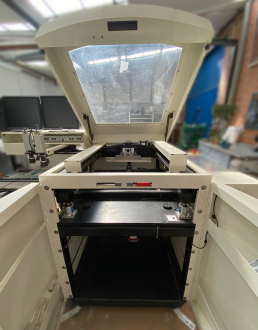

ESPECIFICACIONES:

• The SR2600 is the next evolution of the best‐selling SR2500 printer.  It maintains the compact design of its’ predecessor and improves the printing quality.
• Extremely easy to use.
• All the movements are air‐assisted and can be adjusted according to the printing process.
• Vacuum System can also be held using the tooling pins provided.
• Adjustable snap‐off speed which ensures smooth separation between the stencil and the board, thus improving the paste release from the stencil.
• The table vertical motion is pneumatically controlled by a front panel switch.
• Double‐squeegee head with pneumatic print pressure regulation.
• Squeegee angle can be independently adjusted.
• 350mm metal blade squeegees.
• Universal tooling table with magnetic guides to accept any kind of board including double‐sided.

ESPECIFICACIONES:

• Floor stand, bench type
• Foam fluxer for low solid flux
• Constant level foam fluxer
• Blow-off feature
• Maintenance unit for compressed air
• Medium wave pre-heater
• Double wave soldering module
• Presolder nozzle for SMD assemblies
• Final solder nozzle
• Manual conveyor angle adjustment
• Intervall operation
• Machine status control (indication light)
• 7-day time clock
• Exhaust monitoring
• Emergency stop button
• Printer interface
• Microprocessor control
• Infeed and outfeed extension

ESPECIFICACIONES:

• Ancho de la cinta transportadora: 400 mm
• Altura del transportador: ajustable de 37 «a 38»
• Velocidad del transportador mm / minuto: Mín 75; Máx. 500
• Altura máxima del componente: 35 mm
• Diferencial de temperatura máxima entre zonas adyacentes: 110 °
• Temperatura máx. ajustes: 300 ° C (zona1); 350 ° C (zona 2)
• Consumo de energía máximo: 7 kW
• Consumo de energía promedio: 3 kW
• Zonas de calentamiento: 2
• Zona de enfriamiento: 1
• Fuente de alimentación: 230 voltios o 400 voltios
• Dimensiones: 800x2000x600 mm. (Profundidad x Ancho x Altura)
• Peso neto: 167 Kg
• Embalaje: 880x2050x900 mm. (Profundidad x ancho x altura)
• Peso bruto: 230_
